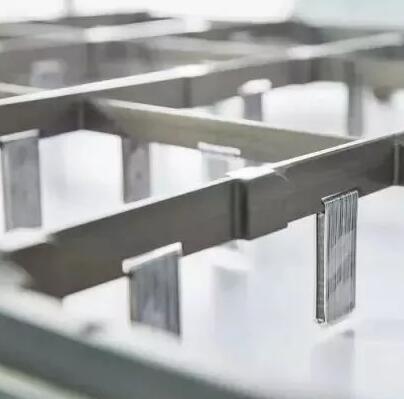

At present, the die-cutting equipment supplied in the market has the function of clearing waste, mainly including full-clearing and half-clearing, as well as clearing bite and half-clearing. The application of the Scrap-clearing die in the tool mould is very extensive. It is used in the automatic die-cutting and Scrap-clearing unit. Its principle is roughly as follows: the material first enters the die-cutting part, then enters the Scrap-clearing board of the Scrap-clearing part. At this time, the material intermediate scrap area and the Scrap-clearing board The holes are aligned, and the waste area on the edge of the material is outside the lower cleaning plate. The upper cleaning plate is laid down from top to bottom, and the waste is thrown down onto the waste conveyor belt to be sent away by using the scrap on the upper cleaning plate, so as to realize the scrap cleaning. The discarded cardboard continues to move to the former discarding section. The finished product is knocked down by the former discarding board. The toothbars drag the scrap from the biting edge to the conveyor belt of the machine. The scrap from the biting edge is then sent to the scrap conveyor belt for removal.

The scrap clearing die must be matched with the knife die. A complete set of scrap clearing die consists of a knife die, a scrap clearing die, a scrap clearing die and a scrap clearing die.

Material for scrap cleaning die:

Tool Mould: 18 or 15MM birch, 1.05 blade, 1.42 line pressing, M5 clamping die gripper

Super Cleaning Waste Mold: Plate: 15MM Birch, 50*0.9MM Cleaning Steel Plate, 35*18MM Cleaning Bar, 50MM High Return Sponge, Bite Block

Scrap mould: 12MM birch board, 50*18MM high support bar, scrap separation steel plate (commonly known as flying), bite block, locking block

Pre-cleaning Waste Die: 18MM Birch Board, M8 Locking Die Grab
